Designed to work small job-site and to wrap quickly.
Used multiple tray and film, not private use film.
Continuous working without pushing button. |
|
| |
 |
|
*Application
Super market, Small mart for agricultural products like apples, pears, peppers, Butcher's Shop and so on.
|
 |
|
|
| |
 Specification |

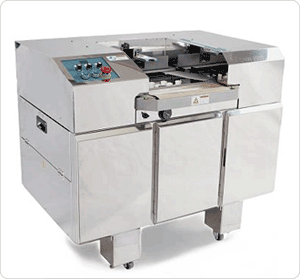

| Model |
NW-3500 |
| Dimension |
1,000(W))*718(D)*908(H) |
| Heating plate temperature |
Max 90°C |
| Heating cutter temperature |
Max 150°C |
| Available power |
100V~220V / 50~60Hz |
| Useful film |
350~450mm |
| Consumer power |
1750w |
| Weight |
156kg |
|
| |
| |
 |
|
| Features
|
Wraps up to 14 packs per minute without hands operating.
Designed to work at narrow job-site.
Better looking and faster working with one touch button. |
| |
.gif) |
|
*Application
Agricultural products like grapes, peppers, and many kinds of vegetables etc
Meat, processed food
|
|
| |
specification
|

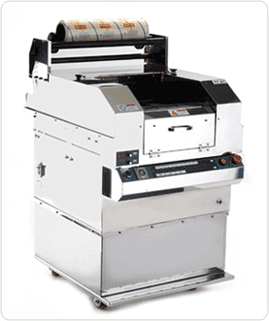

Model |
NW-2500 |
Dimension |
620*790*1060 |
Temperature of heat plate |
Max 90°C |
Temperature of heat cutter |
Max 150°C |
Voltage |
100V~220V / 50~60Hz |
Avaliable length of film |
350~450mm |
Consumed power |
1700w |
Weight |
115kg |
|
| |
| |
 |
|
 NW Series (NW-460 / NW-520 ) film outside
|
| NW is the safest wrapping machine with all stainless, heating plate equipped inside of the body which is covered with aluminum sheet against a leakage of electricity and stainless body against rust and moisture which can cause some troubles. |
| |
 |
|
| NW-460 |
Film out side for 450mm |
| NW-520 |
Film out side for 500mm |
|
|
|
| |
| Specifications |
| DESCRIPTION |
NW-460 |
| DIMENSION |
470(W) x 600(D) x 100(L) |
| TEMPERATURE OF H/P |
90 C MAX |
| TEMPERATURE OF H/C |
150 C MAX |
| VOLTAGE |
220V/50-60Hz |
| WRAPPING LENGTH |
450mm FILM |
| POWER CONSUMPTION |
175W |
| WEIGHT |
6kg |
|
| |
|
| |
| NW-461 / NW-521 (Film inside) |
| PHW-461 is an inside type film type with a chamber. As it has a chamber to protect its film frm a foreign material, the film can be kept in clean and safety. |
| |
 |
|
| NW-461 |
Film out side for 450mm |
| NW-521 |
Film out side for 500mm |
|
|
| |
| Specifications |
| DESCRIPTION |
NW-461 |
| DIMENSION |
550x520x250 |
| TEMPERATURE OF H/P |
90 C MAX |
| TEMPERATURE OF H/C |
150 C MAX |
| VOLTAGE |
220V/50-60Hz |
| WRAPPING LENGTH |
450mm FILM |
| POWER CONSUMPTION |
175W |
| WEIGHT |
7kg |
|
| |
| |
| |
| |
| |
| |
| |
| |
